M*: A Modular, Extensible, Serving System for Multimodal Models

Inference is no longer a single loop

LLM serving systems like vLLM and SGLang are built on one assumption: that inference is a single autoregressive loop — prefill the prompt, then decode one token at a time until the model stops. The newest multimodal models break that assumption. Five families make it concrete:

• UMMs — BAGEL
• SpeechLMs — Orpheus
• Omni — Qwen3-Omni
• VLAs — π0.5
• World models — V-JEPA 2

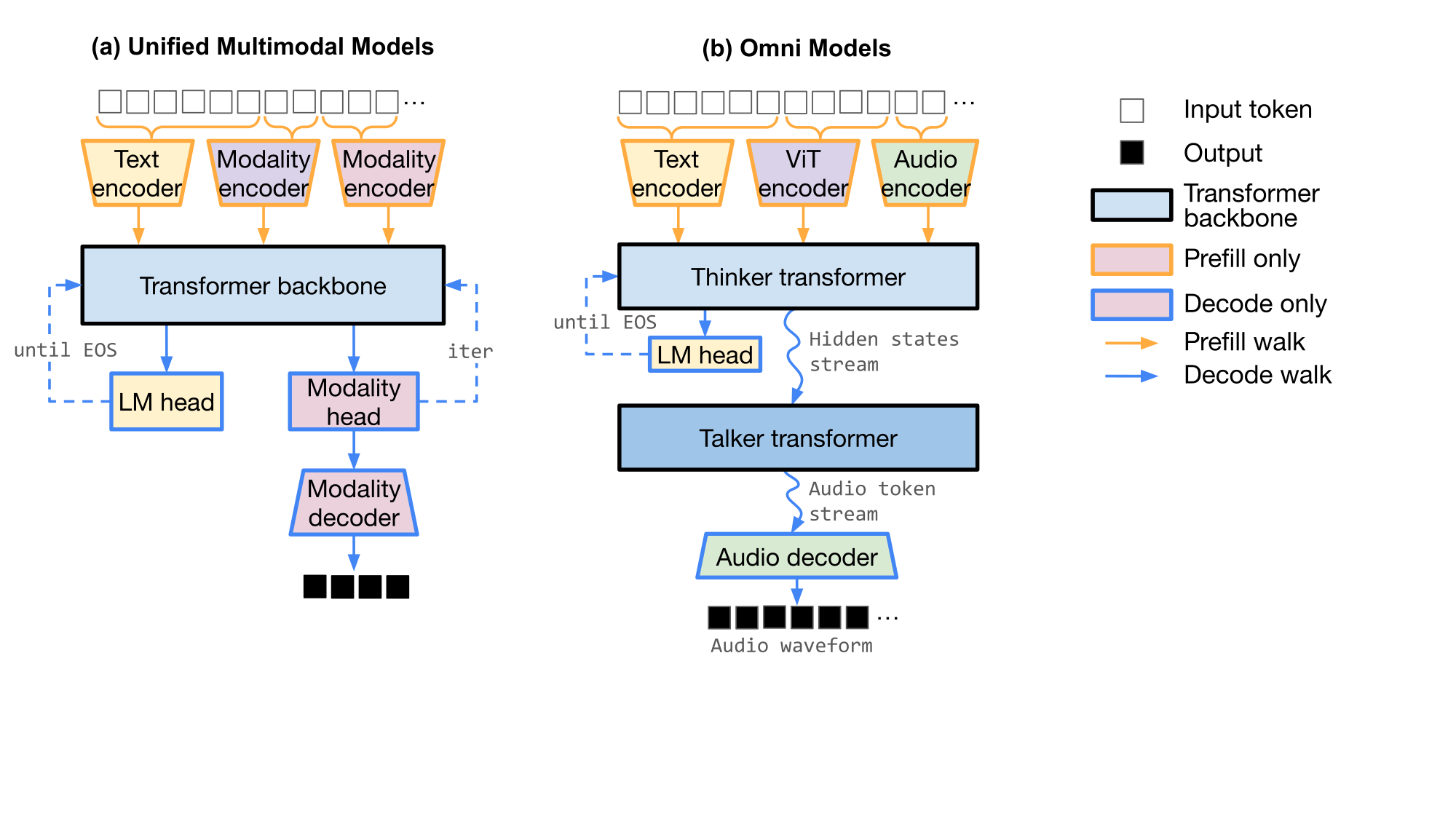

They are composite: built from structurally distinct components — vision encoders, transformer backbones, diffusion and flow heads, audio codecs, action and world-model predictors — wired together in patterns that change with the input. They add non-AR loops (diffusion image generation, variable-horizon world-model rollouts), internal parallelism (the branches of classifier-free guidance; the pipelined Thinker–Talker of an omni model), and input-dependent paths (in BAGEL, generating an image and understanding one traverse different components of the same model).

M* serves all of them from a single runtime. On the models we have benchmarked, M* matches or beats the specialized system built for each — by up to 2.7× on speech and image serving, and 12.5× on world-model rollouts. The rest of this post shows how M* works, starting with code.

Why today's serving stacks fall short

Composite models pose three challenges at once: architectural diversity (many paths, non-AR loops), performant modularity (HuggingFace Transformers is flexible but slow; vLLM and VoxServe are fast but domain-locked), and physical topology (heterogeneous components want different placement, batching, and transport).

vLLM and SGLang are superb at autoregressive text, but they are modality-locked: built for text generation, with image (and even text) inputs supported only as prefill-time encoder add-ons, and a single decode loop whose output is always text. There is no first-class way to compose heterogeneous components into loops and parallel branches — no CFG fan-out — and no cross-component streaming. vLLM-Omni and SGLang-Omni go further, modeling a request as a flat pipeline of stages wired by explicit data-transfer functions — enough for a Thinker–Talker–codec chain. But iteration stays inside a single stage and stages cannot be composed in parallel, so patterns such as diffusion loops or classifier-free guidance (CFG) fan-out must be added per-model as glue code. In vLLM-Omni, for instance, BAGEL's CFG runs through a bespoke plugin built on torch.distributed.

We built M* because we wanted to make it easier for current and future composite models to achieve state-of-the-art efficiency. We found that current systems could be generalized into the M* Walk Graph.

Table 1. Each prior abstraction is a restricted subset of the Walk Graph.

The Walk Graph, by example

In M*, a model is declared as a graph of model-component nodes connected by tensor edges, plus a set of named Walks. Each Walk is a labeled subgraph for one phase of behavior. A request is a series of Walks, chosen by a small state machine the model author writes. The author provides only the graph and the Walks. Everything physical — placement, scheduling, batching, tensor transport, streaming — is the runtime's job.

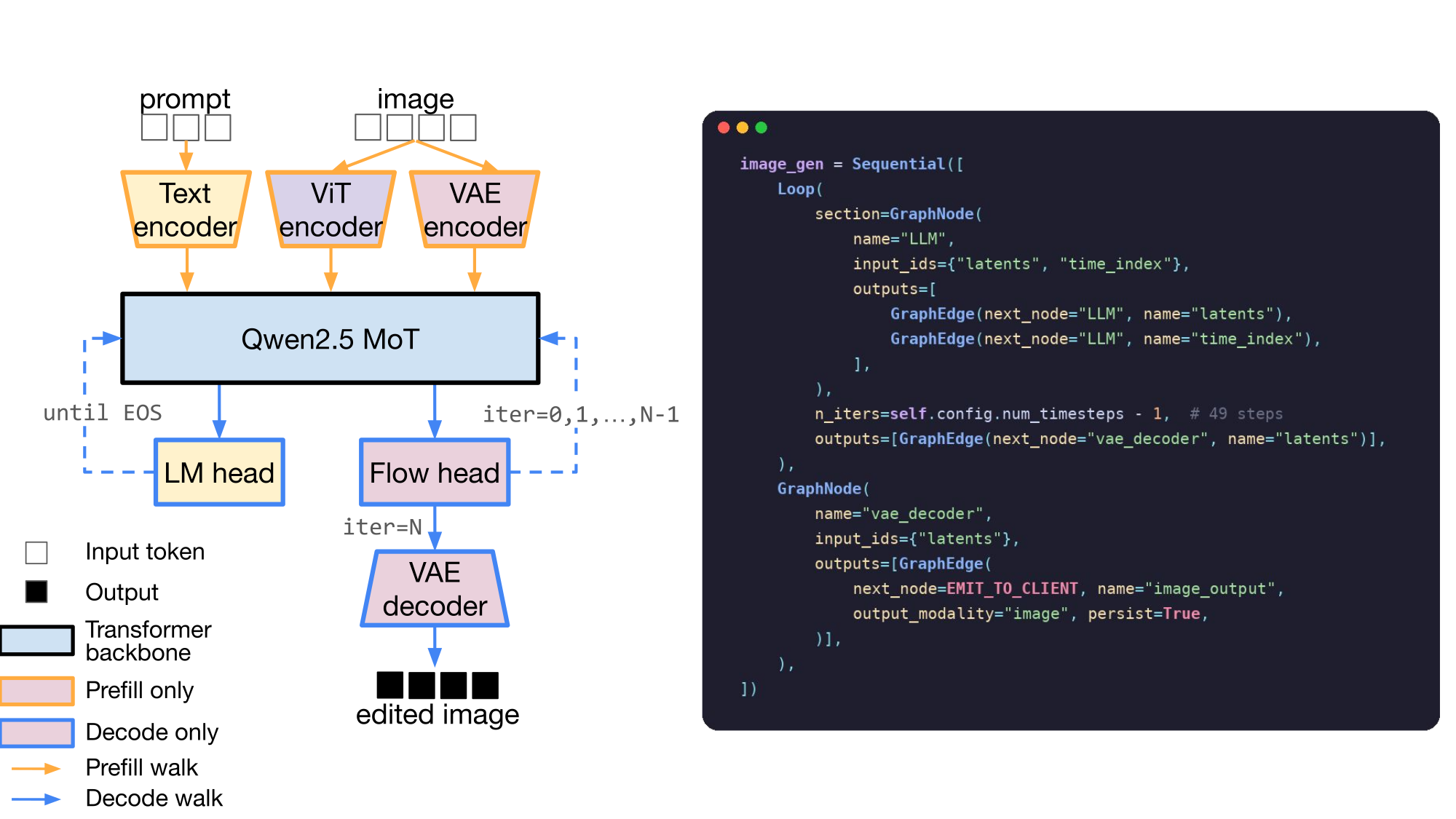

For example, BAGEL has four core components — vit_encoder, vae_encoder, the LLM, and vae_decoder — and a handful of Walks. The state machine strings them together differently per request:

• Generate an image (text→image): prefill_text → image_gen
• Understand an image (image→text): prefill_text → prefill_vit → decode
• Edit an image (image→image): prefill_text → prefill_vae → prefill_vit → image_gen

Defining requests as Walks means that the runtime executes only the components a request needs. Image understanding never touches the diffusion loop or the vae_decoder; image generation never runs the ViT understanding path.

Walks are run based on a state machine the author writes: it builds the prefill steps from the input modalities, then transitions to decode or image generation based on the requested output (note: this is a simplification of the actual M* model code):

# Pick the next Walk based on the current phase
def next_walk(self, state):
    if state.prefill_steps:                 # still consuming inputs
        return state.prefill_steps.pop(0)   #   prefill_text / prefill_vae / prefill_vit
    if state.target == "image":
        return "image_gen"                  #   image_gen_cfg when CFG is configured
    return "decode"                         # otherwise, autoregressive text

Next we'll see how the model author defines the BAGEL graph. If you would rather run it first, go to the quickstart.

Start with one node. A node names its inputs and declares where each output goes. BAGEL's vae_decoder takes denoised latents and emits an image to the client:

from mstar.graph.base import GraphNode, GraphEdge
from mstar.graph.special_destinations import EMIT_TO_CLIENT

vae_decoder = GraphNode(
    name="vae_decoder",
    input_names=["latents"],
    outputs=[
        GraphEdge(next_node=EMIT_TO_CLIENT, name="image_output",
                  output_modality="image"),
    ],
)

The graph only names inputs, outputs, and wiring. The compute behind a node is a torch.nn.Module — the model author implements prepare_inputs and a pure-tensor forward, and the runtime handles batching, KV caching, CUDA graphs, and tensor transport. Here is that Submodule for the vae_decoder node:

class VAEDecoderSubmodule(NodeSubmodule):      # NodeSubmodule is a torch.nn.Module
    def __init__(self, vae_model):
        self.vae_model = vae_model

    def prepare_inputs(self, graph_walk, fwd_info, inputs):
        # gather the tensors this node consumes from its input edges
        return NodeInputs(tensor_inputs={"latents": inputs["latents"][0]})

    def forward(self, graph_walk, engine_inputs, latents):
        # pure tensor compute; outputs are keyed to the node's output edges
        image = self.vae_model.decode(unpatchify(latents))
        return {"image_output": [image]}

Add a loop. BAGEL generates an image by running flow-matching steps on its LLM backbone, then decoding the final latents to pixels. This can be expressed in M* with a Loop, which runs its section repeatedly, feeding each step's outputs back as the next step's inputs. When the loop finishes, its outputs route forward — here, the latents route to the vae_decoder we just built:

from mstar.graph.base import Sequential, Loop

image_gen = Sequential([
    Loop(
        section=GraphNode(
            name="LLM",
            input_names=["latents", "time_index"],
            outputs=[
                GraphEdge(next_node="LLM", name="latents"),
                GraphEdge(next_node="LLM", name="time_index"),
            ],
        ),
        max_iters=49,                       # num_timesteps - 1
        outputs=[GraphEdge(next_node="vae_decoder", name="latents")],
    ),
    vae_decoder,                            # the node from above
])

The same Loop primitive covers autoregressive text decode (it stops on an end-of-sequence signal instead of a fixed count) and world-model rollout (it stops at the horizon). Nothing here is special-cased to images. Furthermore, because Loops are generic, M* applies continuous batching and CUDA-graph replay to flow steps exactly as it does to token decode.

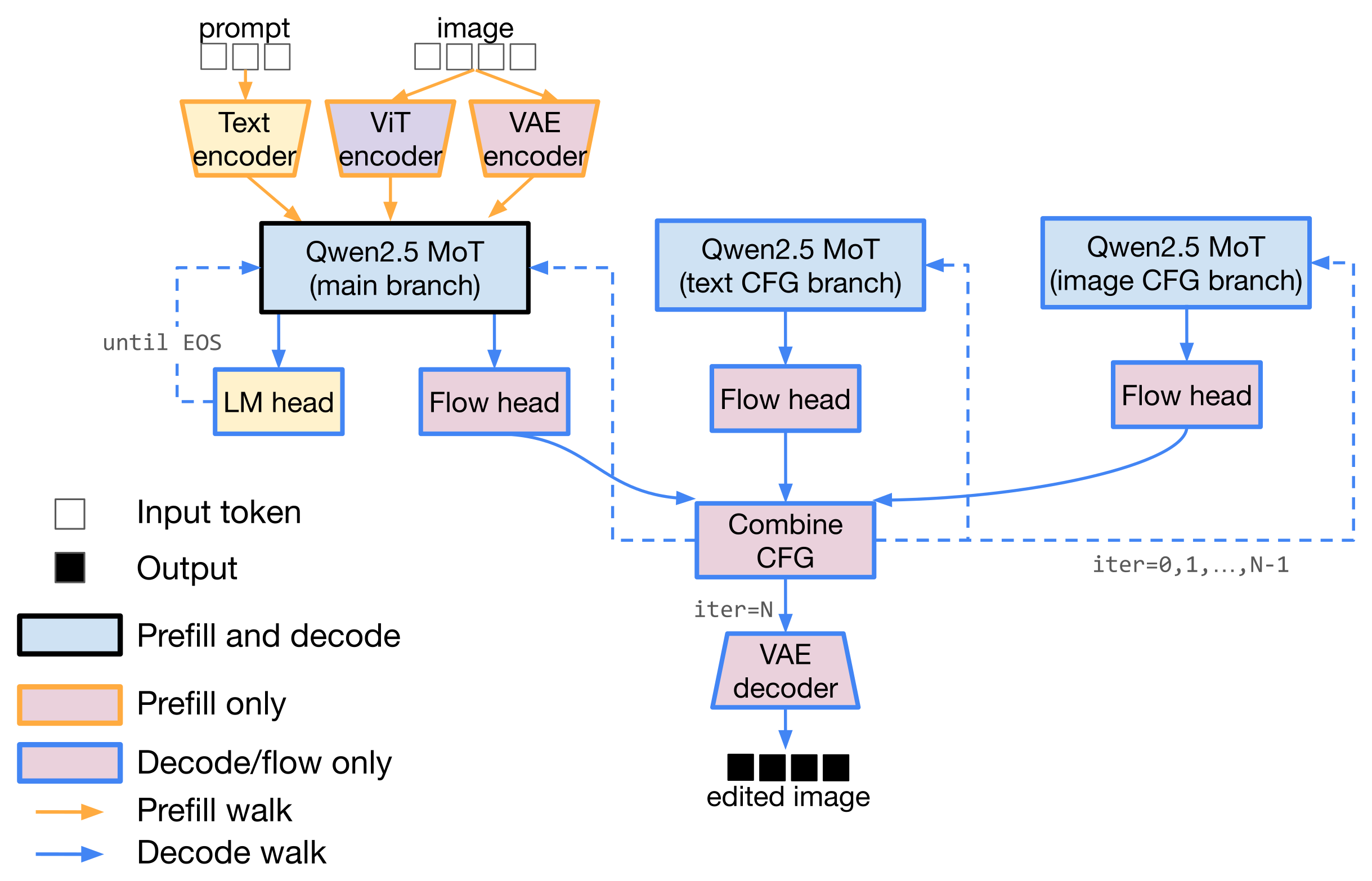

Add parallelism. Classifier-free guidance (CFG) runs three forward passes per denoising step — an unconditional pass and two conditioned ones — and combines them. Running these in parallel is ideal for minimizing latency. Unfortunately, this kind of pattern is hard to capture in the flat stage pipelines used by vLLM-Omni or SGLang-Omni. Because three-way CFG can't be natively supported, it requires a bespoke per-model plugin (e.g., a CFGParallelMixin that all_gathers velocities across ranks in vLLM).

Meanwhile, M* handles all parallelism in a generic way, so the user just needs to express the parallelism to the runtime. This is done with a Parallel block of three LLM “views” that fan into a combine_cfg node and loop. Each branch can sit on its own GPU; the runtime places and merges them with no per-model glue code (listing lightly simplified):

from mstar.graph.base import Parallel

image_gen_cfg = Sequential([
    Loop(
        section=Sequential([
            Parallel([
                GraphNode(name="LLM",          input_names=["latents", "time_index"],
                          outputs=[GraphEdge(next_node="combine_cfg", name="v_main")]),
                GraphNode(name="LLM_cfg_text", input_names=["latents", "time_index"],
                          outputs=[GraphEdge(next_node="combine_cfg", name="v_cfg_text")]),
                GraphNode(name="LLM_cfg_img",  input_names=["latents", "time_index"],
                          outputs=[GraphEdge(next_node="combine_cfg", name="v_cfg_img")]),
            ]),  # latent-init consistency ensured via a fixed per-request seed
            GraphNode(
                name="combine_cfg",
                input_names=["v_main", "v_cfg_text", "v_cfg_img", "latents", "time_index"],
                outputs=[       # feed latents + time_index back to every branch
                    GraphEdge(next_node="LLM",          name="latents"),
                    GraphEdge(next_node="LLM",          name="time_index"),
                    GraphEdge(next_node="LLM_cfg_text", name="latents"),
                    GraphEdge(next_node="LLM_cfg_text", name="time_index"),
                    GraphEdge(next_node="LLM_cfg_img",  name="latents"),
                    GraphEdge(next_node="LLM_cfg_img",  name="time_index"),
                ],
            ),
        ]),
        max_iters=49,
        outputs=[GraphEdge(next_node="vae_decoder", name="latents")],
    ),
    vae_decoder,  # as defined in "Start with one node" above
])

How do the three LLM views connect to the real model? Each node name maps to a Submodule, and the three CFG branches are the same language model wrapped under three names, differing only in which guidance cache they read and write.

Placement. Placement is a small YAML file that maps logical nodes to physical GPU ranks. Nothing in the model code changes when you move components around. Mapping each node to GPU ranks — disaggregating components, disaggregating prefill from decode, or using tensor-parallel sharding — always uses the same placement API, so you can shard a big Qwen3-Omni backbone while disaggregating its encoders and codec elsewhere.

As an example, the same BAGEL graph runs on one GPU:

# Single GPU: everything colocated
model: "bagel"
node_groups:
  - { node_names: [vit_encoder, vae_encoder, vae_decoder, LLM], ranks: [0] }

...or fans the three CFG branches across three GPUs — active only during image generation — by editing the same file:

# Three GPUs: CFG branches on their own ranks, only during image_gen_cfg
model: "bagel"
node_groups:
  - { node_names: [vit_encoder, vae_encoder, vae_decoder], ranks: [0] }
  - { node_names: [LLM, combine_cfg], ranks: [0] }
  - { node_names: [LLM_cfg_text], ranks: [1], graph_walks: [image_gen_cfg] }
  - { node_names: [LLM_cfg_img],  ranks: [2], graph_walks: [image_gen_cfg] }

The graph_walks key lets you place a node differently per Walk — for example, prefill for a node can happen on one GPU while decode happens on another.

Streaming, by example: Qwen3-Omni

Some components have to overlap in time. Qwen3-Omni speaks by pipelining three components: a Thinker (the LLM that produces hidden states and text), a Talker (an autoregressive model that turns those into audio codec tokens), and Code2Wav (a code-to-waveform codec decoder). To start playing audio before the whole response is computed, the Thinker streams one hidden state at a time to the Talker, and the Talker streams codec frames to Code2Wav.

In M*, streaming is a first-class edge type: the producer just marks an output as streaming to a downstream partition, and a chunk policy — declared once in the model's topology and matched to the edge by name — decides how the consumer reassembles the stream:

from mstar.streaming.topology import Connection, PartitionTopology, StreamingGraphEdge
from mstar.streaming.chunk_policy import FixedChunkPolicy, LeftContextChunkPolicy

# Inside the Thinker's walk: hidden states stream to the Talker.
StreamingGraphEdge(next_node="Talker", name="thinker_states", target_partition="Talker")

# Inside the Talker's walk: codec frames stream to Code2Wav.
StreamingGraphEdge(next_node="Code2Wav", name="codec_tokens", target_partition="Code2Wav")

# How each stream is reassembled is declared once, in the model's topology:
PartitionTopology(
    partitions=["Thinker", "Talker", "Code2Wav"],
    connections=[
        Connection(from_partition="Thinker", to_partition="Talker",
                   edge_name="thinker_states",
                   chunk_policy_factory=lambda: FixedChunkPolicy(chunk_size=1,
                                                                 continue_after_done=True)),
        Connection(from_partition="Talker", to_partition="Code2Wav",
                   edge_name="codec_tokens",
                   chunk_policy_factory=lambda: LeftContextChunkPolicy(chunk=25, left_context=25)),
    ],
)

FixedChunkPolicy(chunk_size=1) feeds the Talker one Thinker state per step; LeftContextChunkPolicy hands Code2Wav 25-frame chunks plus 25 frames of left context to warm up its causal convolutions. The Talker runs as an autoregressive Loop; Code2Wav is re-triggered per chunk. The result is three components on three GPUs, overlapping in time, emitting audio incrementally. The same small set of chunk policies — fixed, sliding-window, left-context — covers every streaming edge in our models (Orpheus's SNAC decoder uses the sliding-window one), instead of bespoke per-model streaming code.

What the Walk Graph unlocks

Decoupling the model from the runtime is where the performance comes from.

• Modality-aware scheduling

  Run only the components a request needs. A Walk names exactly which parts of the model participate, so text-only responses bypass image-generation paths — and these optimizations emerge from the model executor itself, not model-specific scheduling logic.

• Reusable systems optimizations

  Execution stages share a common interface, so paged attention, FlashInfer kernels, torch.compile, and CUDA Graphs apply across diverse components — from LLM decoding to diffusion transformers and speech modules — with no bespoke integration per model.

• Flexible parallelism

  Express parallelism within a graph stage with Parallel (e.g. the three CFG branches); the runtime executes all instances of parallelism uniformly.

• Flexible placement

  Map each node to GPU rank(s): encoder/decoder disaggregation, prefill/decode/flow split, independent scaling, transparent multiplexing, and tensor-parallel sharding of one large component across GPUs.

• Loops are first-class

  Continuous batching and CUDA-graph replay apply to any loop, so diffusion steps, world-model rollouts, and token decode all ride the same machinery — and a rollout's KV cache persists across steps instead of being recomputed.

• Streaming is first-class

  One small set of chunk policies covers every streaming edge, regardless of placement — and connections between colocated components incur no communication overhead.

Under the hood

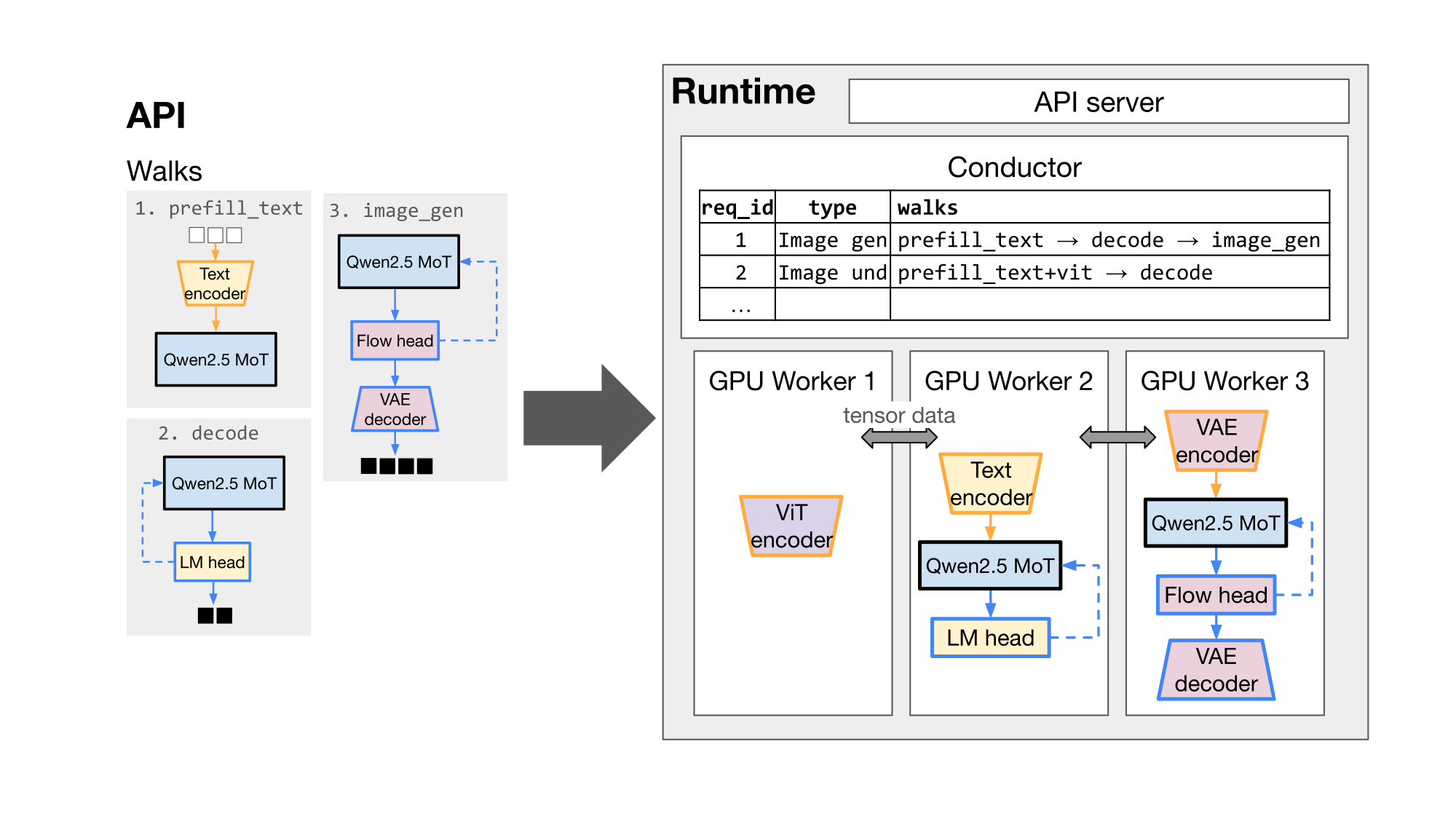

M* lowers the graph to a distributed runtime. A Conductor tracks each request's Walk and dispatches work to per-GPU Workers that route tensors directly to one another. Some key features:

• Pluggable data plane

  Components exchange tensors over shared memory, RDMA, or TCP (via Mooncake), chosen by where the components are located.

• A handful of engines

  A modality-agnostic AR engine (it also handles any node that needs a KV cache and/or sampling) with a FlashInfer paged-attention KV cache, plus a stateless engine for encoders, decoders, and audio codecs; all support continuous batching and CUDA-graph replay.

• Overlapped scheduling

  While the current step runs on the GPU, M* prepares the next batch and its attention plan on a separate stream, and keeps loops moving by deferring each stop check one iteration. This is implemented generically over the Loop primitive — not just text or speculative decoding — so the GPU rarely stalls on CPU scheduling.

• Sharding × disaggregation

  Tensor-parallel sharding (parallel linears, vocab-parallel embeddings, sharded MoE and KV cache, NCCL collectives) is built in and set with a tp_size in the placement file, so one large component doesn't have to fit on one GPU.

Does it work? — Matching or beating specialized systems

We instantiate M* on five real models and compare against the strongest specialized baseline for each.

Table 2. Five models, five specialized baselines — M* matches or beats each. Benchmarks as of June 2026.

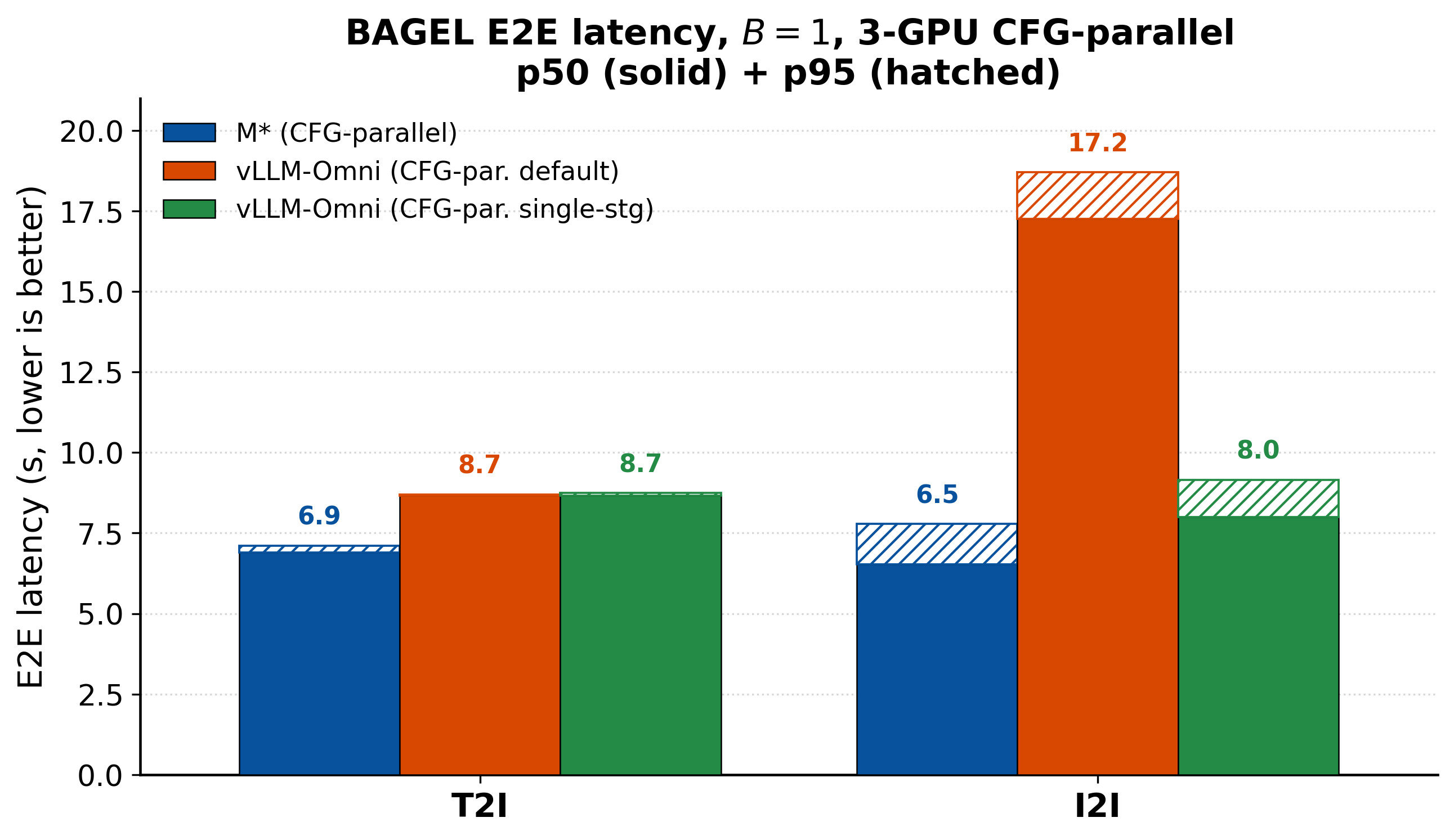

The wins come from the abstraction. For image generation and editing (Figure 5), M* runs BAGEL's three-way classifier-free guidance as a Parallel block spread across three GPUs, and finishes faster than every vLLM-Omni configuration: about 1.3× lower end-to-end latency on text-to-image, and up to 2.6× on image editing versus vLLM-Omni's default pipeline. Against vLLM-Omni's best-tuned single-stage configuration, the editing margin is about 1.2×.

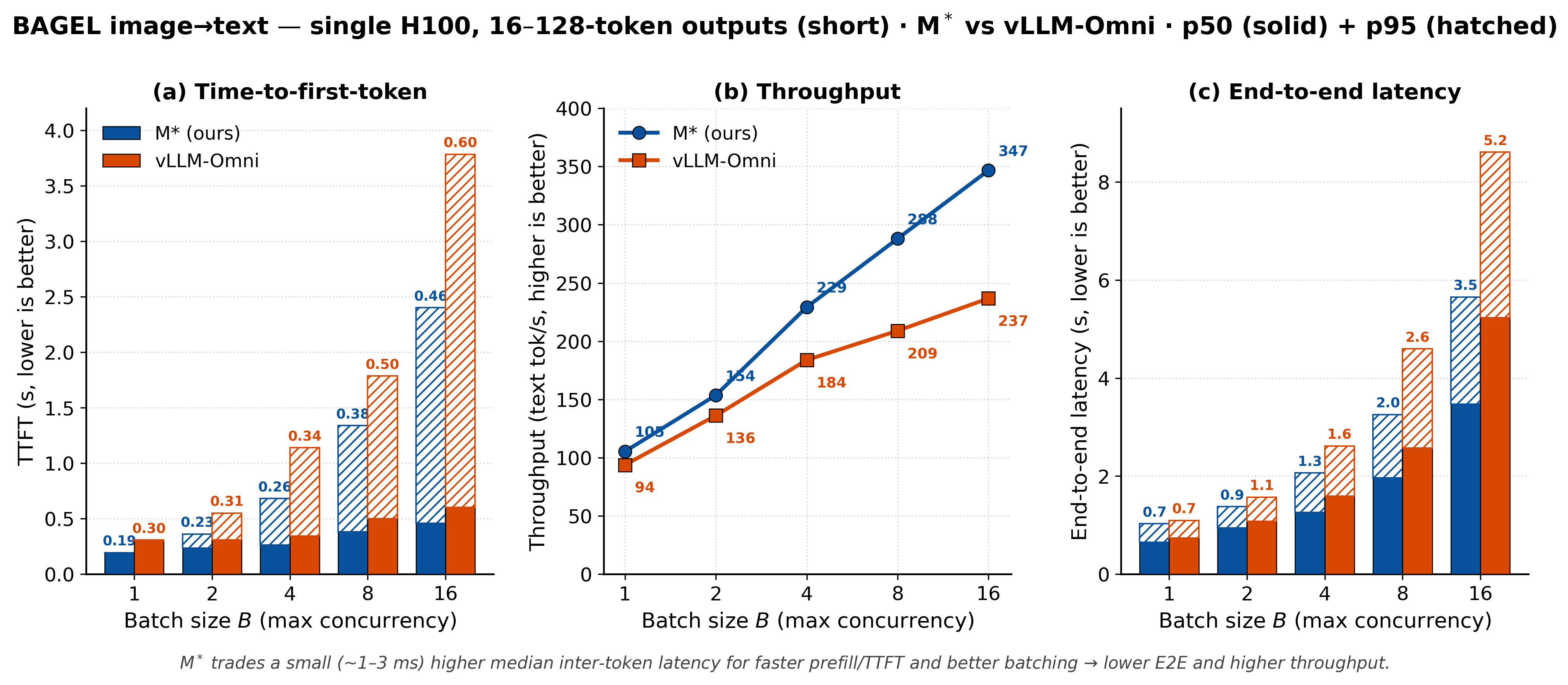

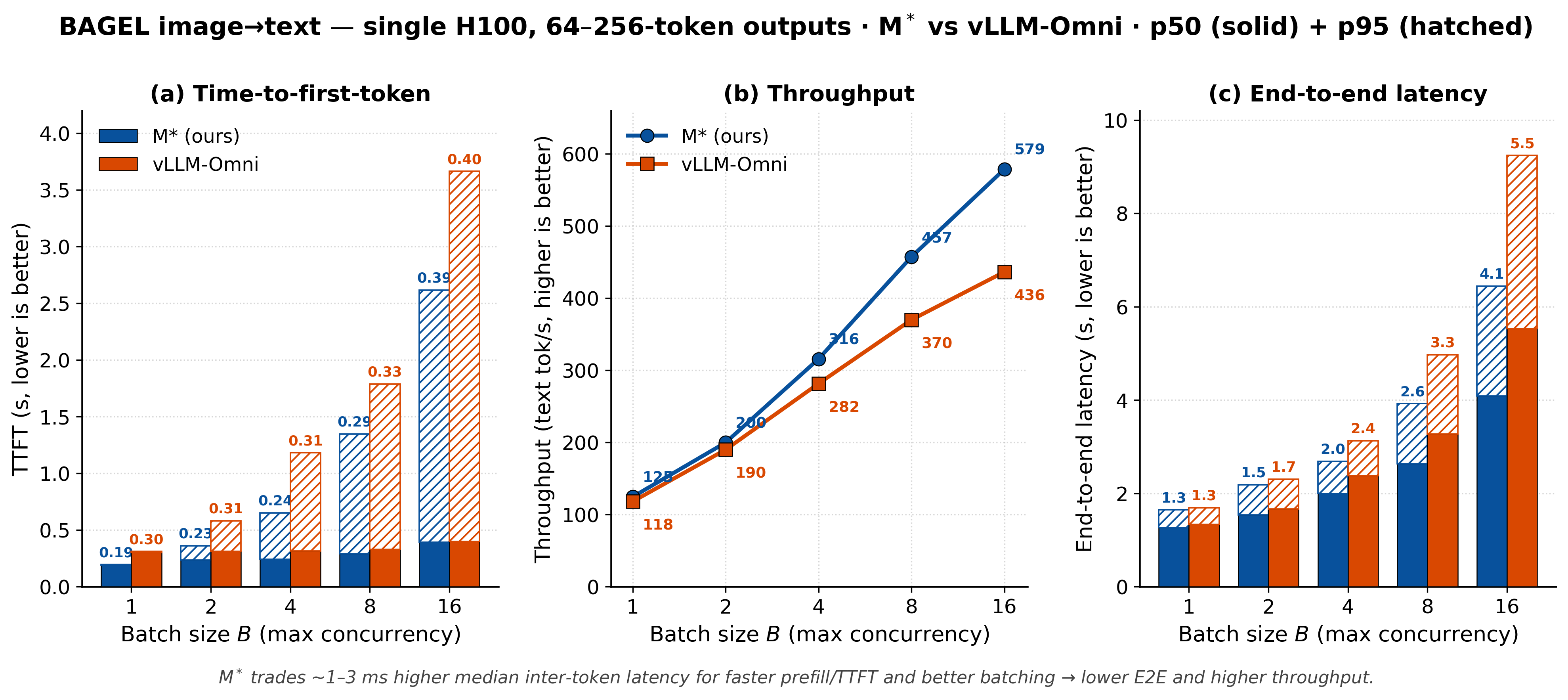

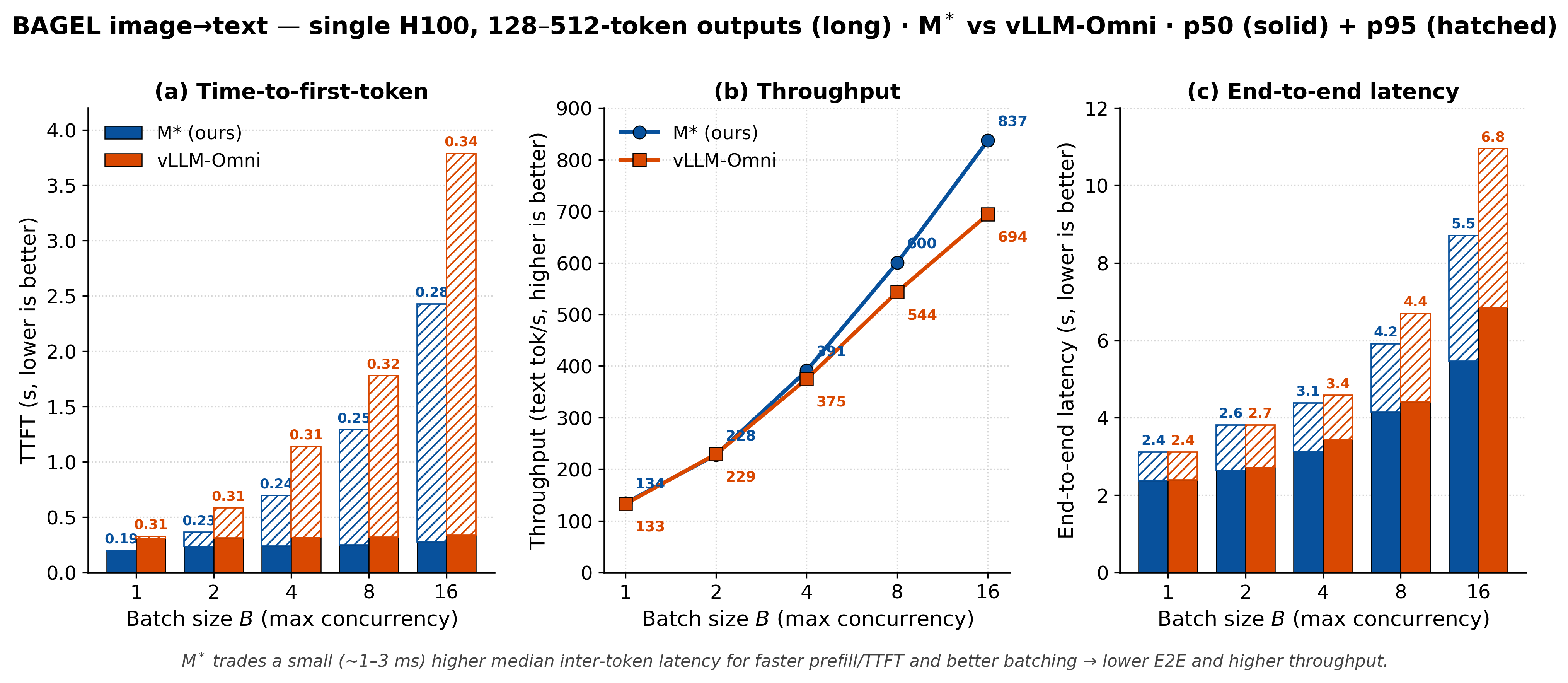

Image understanding is more nuanced (Figures 6 to 8). Because a Walk names exactly the components a request touches, an image-to-text request never runs the diffusion path, so M* returns the first token about 1.6× faster than vLLM-Omni and holds a throughput lead that grows with batch size, reaching about 46% for short outputs. The cost is a slightly higher median inter-token latency, roughly 1 to 3 ms. M*'s advantage is therefore largest under load and for shorter responses, and narrows to near-parity for long outputs at low concurrency.

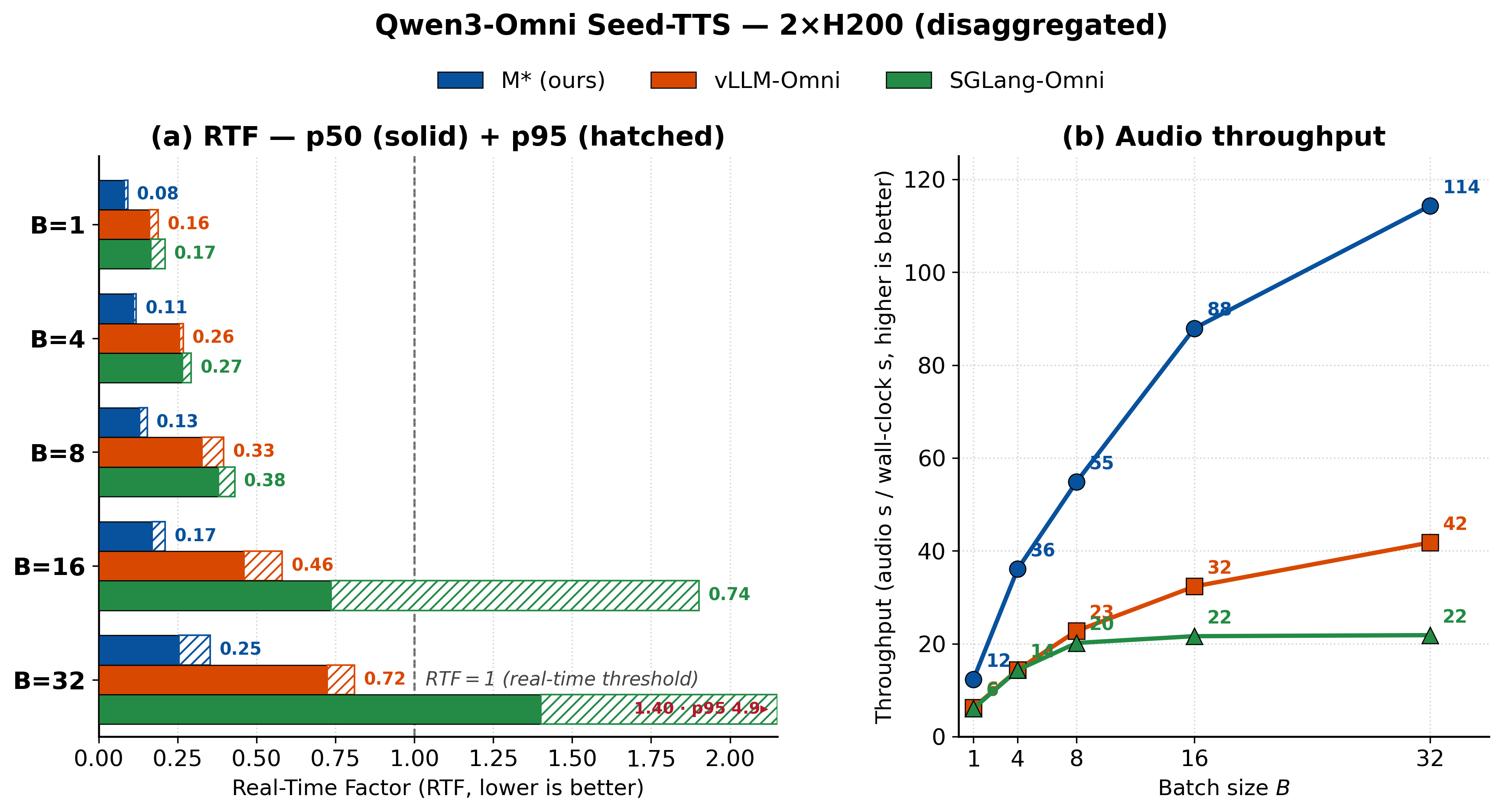

Speech and omni models follow the same pattern (Figures 9 to 11). On Qwen3-Omni text-to-speech, M* sustains about 2.7× the throughput of vLLM-Omni and about 4× that of SGLang-Omni, and it stays real-time through batch size 32, where SGLang-Omni's tail latency runs past the real-time threshold. Sharding the Thinker across two GPUs keeps about a 3.8× throughput lead, an example of sharding and disaggregation working together. On Orpheus, M* posts a lower real-time factor and higher audio throughput than VoxServe at every batch size we benchmarked.

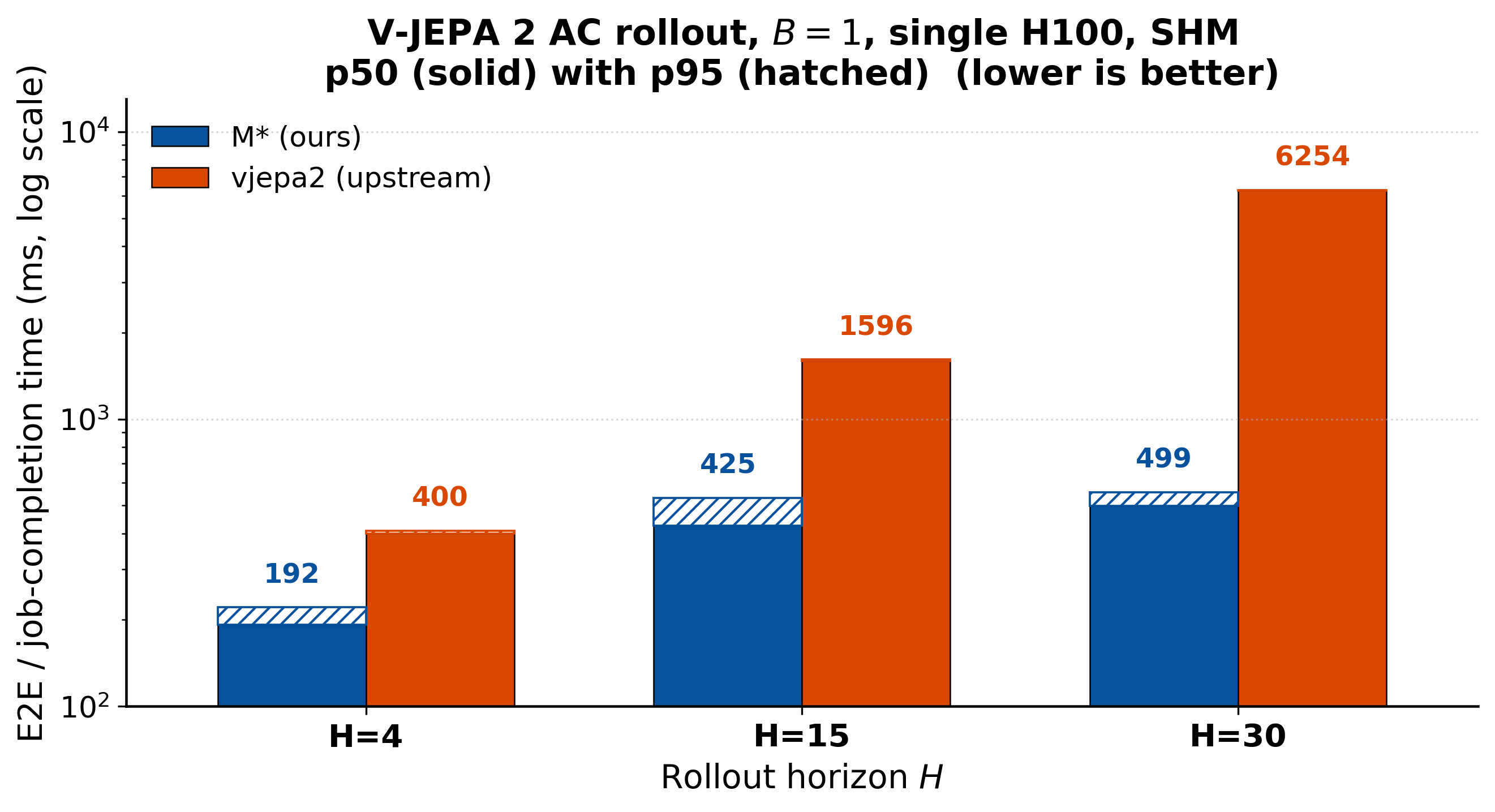

World models show what first-class loops buy (Figure 12). M* expresses the rollout as a Loop with a persistent KV cache instead of recomputing it from scratch each step, which yields up to 12.5× over Meta's native rollout.

Coming soon

• +More models, coming soon. More omni models (Ming-flash-omni-2.0, Qwen3.5-Omni), world models (Cosmos 3), and more VLAs — among others. Want a model supported? Get in touch or open a GitHub issue.
• +More parallelism, everywhere. Tensor-parallel sharding is live and rolling out across model families; sequence/context and DiT-specific parallelism are coming soon.
• +Unified engine plugins. Converging the AR, encoder/decoder, and audio-codec engines behind one interface.

What's next

The bigger picture the Walk Graph opens up — three directions we are actively pursuing.

• →SLO-aware placement and path-aware autoscaling. Search automatically for a node-and-Walk → worker placement that meets an objective (throughput, latency, or cost), and rescale to the live traffic mix: scale up only the components on hot Walks, and offload cold ones to host memory off the critical path.
• →An agentic serving layer. An agent is itself a graph over model calls, the same shape M* runs inside one model; we are building a layer that places the inter-model agent graph and the intra-model component graph under one runtime, so calls across many agents share scheduling, placement, batching, and cached state.
• →A compiler for the Walk Graph. Treated as an IR, the graph enables graph-level optimization (eliminating components a request never touches, fusing operations, scheduling the overlap above) and mapping each component to the hardware it runs best on.

Get the code

Try it: install M*, point it at a model with a placement config, and serve in one command (see the quickstart). We'd love your feedback: open a GitHub issue, or email atindra@cs.stanford.edu. If there's a model you'd like to see supported, tell us.

M* is open source. If you build on this work, please cite it:

Cite

@article{mstar2026,
  title     = {M*: A Modular, Extensible, Serving System for Multimodal Models},
  author    = {Atindra Jha and Naomi Sagan and Keisuke Kamahori and Irmak Sivgin and
               Rohan Sanda and Steven Gao and Mark Horowitz and Luke Zettlemoyer and
               Olivia Hsu and Jure Leskovec and Baris Kasikci and Stephanie Wang},
  year      = {2026},
  eprint    = {2606.12688},
  archivePrefix = {arXiv},
  primaryClass = {cs.LG}
}
